Orbital Weld Ball Valve
with Actuator
Designed & Manufactured as per Industry Standards
End Connection: ASME B 16.25
- Double Gasket Body Sealing ensures positive body joint sealing against pipelines stresses.
- Multi sealed stem prevents atmospheric leakage.
- Antistatic and Blow – out Stem.
The stem assembly consists of Belleville Washer set over the gland and tightened by gland nut assured zero gland leakage, due to live loading of gland.
- Mounting Interface
ISO 5211 - MOC of the Body
CF8, CF8M, CF3, CF3M (Electropolished) - Trim
CF8, CF8M, CF3, CF3M (Mirror polished) - Seat
PTFE (Special on request) - Cavity – Filler
PTFE
- Size
½”to 4” - Pressure Rating
PN 10 - Construction
RB, 3 piece
Screwed End Ball
Valve with Actuator
Designed & Manufactured as per Industry Standards.
End Connection: ANSI / ASME B 1.20.1:1993 / BS 21.
- Double Gasket Body Sealing ensures positive body joint sealing against pipeline stresses.
- Multi seated stem prevents atmospheric leakage.
- Antistatic and Blow – out Stem.
The stem assembly consists of Belleville Washer set over the gland tightened by gland nut assured zero gland leakage, due to live loading of gland.
- Mounting Interface
ISO 5211 - MOC of the Body
WCB, CF8, CF8M, CF3, CF3M (special on request) - Trim
CF8, CF8M, CF3, CF3M (special on request) - Seat
PTFE, RPTFE, CFT, GFT(Special on request) - Cavity Filler
PTFE RPTFE CFT
- Size
¼”to 2” - Pressure Rating
CWP 1000# to ASME 2500# - Construction
FB, 3 piece RB, 3 piece
Socket Weld Ball Valve
with Actuator
Designed & Manufactured as per Industry Standards
End Connection: ASME B16.11
- Double Gasket Body Sealing ensures positive body joint sealing against pipelines stresses.
- Multi sealed stem prevents atmospheric leakage.
- Antistatic and Blow – out Stem.
The stem assembly consists of Belleville Washer set over the gland and tightened by gland nut assured zero gland leakage, due to live loading of gland.
- Mounting Interface
ISO 5211 - MOC of the Body
WCB, CF8, CF8M, CF3, CF3M (special on request) - Trim
CF8, CF8M, CF3, CF3M (special on request) - Seat
PTFE, RPTFE, CFT, GFT - Size
¼”to 2”
- Pressure Rating
CWP 1000#, PN 50 - Construction
FB, 3 piece RB, 3 piece

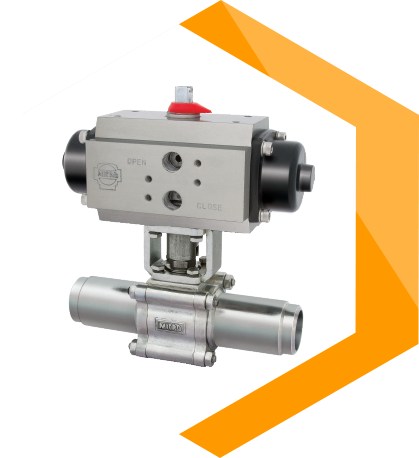

Buttweld Ball Valve
with Actuator
Designed & Manufactured as per Industry Standards
End Connection: ASME B16.25
- Double Gasket Body Sealing ensures positive body joint sealing against pipelines stresses.
- Multi sealed stem prevents atmospheric leakage.
- Antistatic and Blow – out Stem.
The stem assembly consists of Belleville Washer set over the gland and tightened by gland nut assured zero gland leakage, due to live loading of gland.
- Mounting Interface
ISO 5211 - MOC of the Body
WCB, CF8, CF8M, CF3, CF3M (special on request) - Trim
CF8, CF8M, CF3, CF3M (special on request) - Seat
PTFE, RPTFE, CFT, GFT - Size
½”to 4”
- Pressure Rating
ASME-150# - Construction
FB, 3 piece RB, 3 piece
Metal Seated Ball Valve with Actuator
and Position Indicator
- Designed & Manufactured as per Industry Standards
- Pressure Testing API 6D, API 598, BS 6755.
- Fire Test API 6FA, BS 6755 Part II
Metal seated ball valve is well suited for variety of demanding services where high temperature and abrasive solids are present. The design provides freedom for thermal expansion of the ball without jamming even at extreme temperature.
Application: Hot Gases, liquids, Solids and Slurries.
Tightness rates: allowable leakage rate at full ▲P ASME/FCI 70-2 Class V with special lapping.
- Mounting Interface
ISO 5211 - MOC of the Body
WCB, CF8, CF8M, CF3, CF3M, - Trim
SS 316 / SS 304 HastalloyStellitedand ground - Seat
SS 304 , SS 316Stellited Inconel 625, - Backup Seal
Graphite
- Size
½”to 8” - Pressure Rating
ASME 150#, ASME 300# - Construction
FB, 3 piece / 2 piece
Lined Ball Valve
with Actuator
and Solenoid Valve
2 Piece Designed ball Valve Body with minimum 3.5 mm thermoplastic lining of PFA, FEP and PVDF, one – piece ball and Stem with minimum lining of 3 mm of PFA, FEP and PVDF universally used for highly corrosive and chemical application.
Full lining thickness in the sealing zone however provides security against permeating media. Live-loaded PTFE seat rings, a permanent tightness is ensured for pressure, temperature and vacuum.
- MOC of the Body
Ductile Iron, WCB, CF8, CF8M, CF3M (Lined) - Trim
WCB, CF8, CF8M, CF3M (Lined) - Lining
FEP PFA PVDF - Seat
PTFE, RPTFE (Special on request)
- Size
½”to 8” - Pressure Rating
PN 10 (Flange, dimensions as per ASA 150 #) - Construction
FB, 3 piece
TC End Ball Valve with Actuator
(Valve without Cavity Filler)
- Designed and manufactured as per GMP Norms and ISO 2852.
- Mainly used in Pharmaceuticals, Food and Beverage Industries. Ease to separate from pipe line to flush out periodically.
- Valve surface roughness achieved with electro polish and a series of grit polish.
- Mounting Interface
ISO 5211 - MOC of the Body
CF8, CF8M, CF3, CF3M (Electro polished and internal surface Buffed ) - Trim
CF8, CF8M, CF3 CF3M (Mirror Polished) - Seat
PTFE
- Size
½”to 6” - Pressure Rating
PN 10 - Construction
FB, 3 piece
TC End Cavity Filled Ball Valve
with Actuator
High Purity Ball Valve: Designed and manufactured as per GMP norms, ISO 2852 and ASME / BPE 1997 / API 6D
Typically used in Bio – Pharma, Pharmaceuticals, Food & Beverage Industry.
A series of grit polishes is applied in a successively finer sequence until the desired finish or surface roughness achieved on the internal surface of the valve and components.
The integrated seat with cavity filler prevents fluids entrapment leading to contamination and cavity fillers ensures clean internals.
- Mounting Interface
ISO 5211 - MOC of the Body
CF8, CF8M, CF3, CF3M (Electro polished and internal surface Buffed ) - Trim
CF8, CF8M, CF3, CF3M (Mirror Finished) - Lining
FEP PFA - Seat/Cavity Filler
PTFE
- Size
½”to 6” - Pressure Rating
PN 10 - Construction
FB, 3 piece
2 Piece Designed Soft
Seated Ball Valve
- Designed & Manufactured as per Industry Standards
- Pressure Testing API 6D, API 598, BS 6755.
- Fire Test API 6FA, BS 6755 Part II
Designs
- Floating Ball Valve
- Trunnion Mounted Ball Valve.
Floating Design
- Independent Ball and Stem to minimize the effect of the side thrust generated by the pressure acting on the Ball. Two independent Floating Seat Rings assure Bi–directional zero leakage at maximum rated pressure.
Trunnion Mounted Ball Design
- The ball is fixed and the seat rings are floating free to move along the Valve Axis. At low pressure the Seat Sealing action is achieved by the thrust of the spring’s actions on the seat rings. As the pressure increases the seat rings are pushed against the ball.
- Mounting Interface
ISO 5211 - MOC of the Body
WCB, CF8, CF8M, CF3, CF3M (Special on request) - Trim
CF8, CF8M, CF3, CF3M (Special on request) - Seat
PTFE, RPTFE, CFT, GFT, CO8023 (High Temperature), PCTFE (Cryogenic)
- Size
½”to 16” - Pressure Rating
ASME 150# , ASME 300#(Higher rating on request ) - Construction
FB, 2 piece / 3 piece.RB, 2 piece
2 Piece Designed Ball Valve
with Complete Automation System
The complete Electro Pneumatic system consist of ball valve, Declutchable Gearbox, Pneumatic Rotary Actuator, Position Indicator and Solenoid Valve.
The valve can be operated by declutchable Gearbox fitted on the valve, even when the Electrical power or Air Pressure fails.
Valve
- Designed & Manufactured as per Industry Standards
- Pressure Testing API 6D, API 598, BS 6755.
- Fire Test API 6FA, BS 6755 Part II
Type
- Floating Ball Valve
- Trunnion Mounted Ball Valve.
Actuator
- Actuators are pneumatically operated quarter turn rotary, dual Rack and Pinion Design manufactured under a robust quality assurance system complying API 6A and ISO 9001:2008
- The valve can be operated by declutchable Gear Box fitted on the valve, even when the Electrical power or Air Pressure fails.
Jacketed Ball
Valve with actuator
- Jacketed ball valves are used for high viscous Media like ‘Resin’ or Slurry applications which solidifies at certain temperature range thereby affecting flow ability of media.
- The Jackets assure consistent valve heating or cooling of process media to prevent crystallization or siezing of flow media.
- The jacket covers the body from one flange to the other flange. Hence the valve body is modified by adding over size flanges than standard size of the valve flange.
- Mounting Interface
ISO 5211 - MOC of the Body
WCB, CF8, CF8M, CF3M, Hastalloy (Special on request) - Trim
CF8, CF8M, CF3, CF3M, Hastalloy (Special on request) - Seat
PTFE, CFT, GFT, C08023, Inconel 625 (Special on request)
- Size
½”to 8” - Pressure Rating
150#, 300# - Construction
FB / 2 way / Single piece Design
