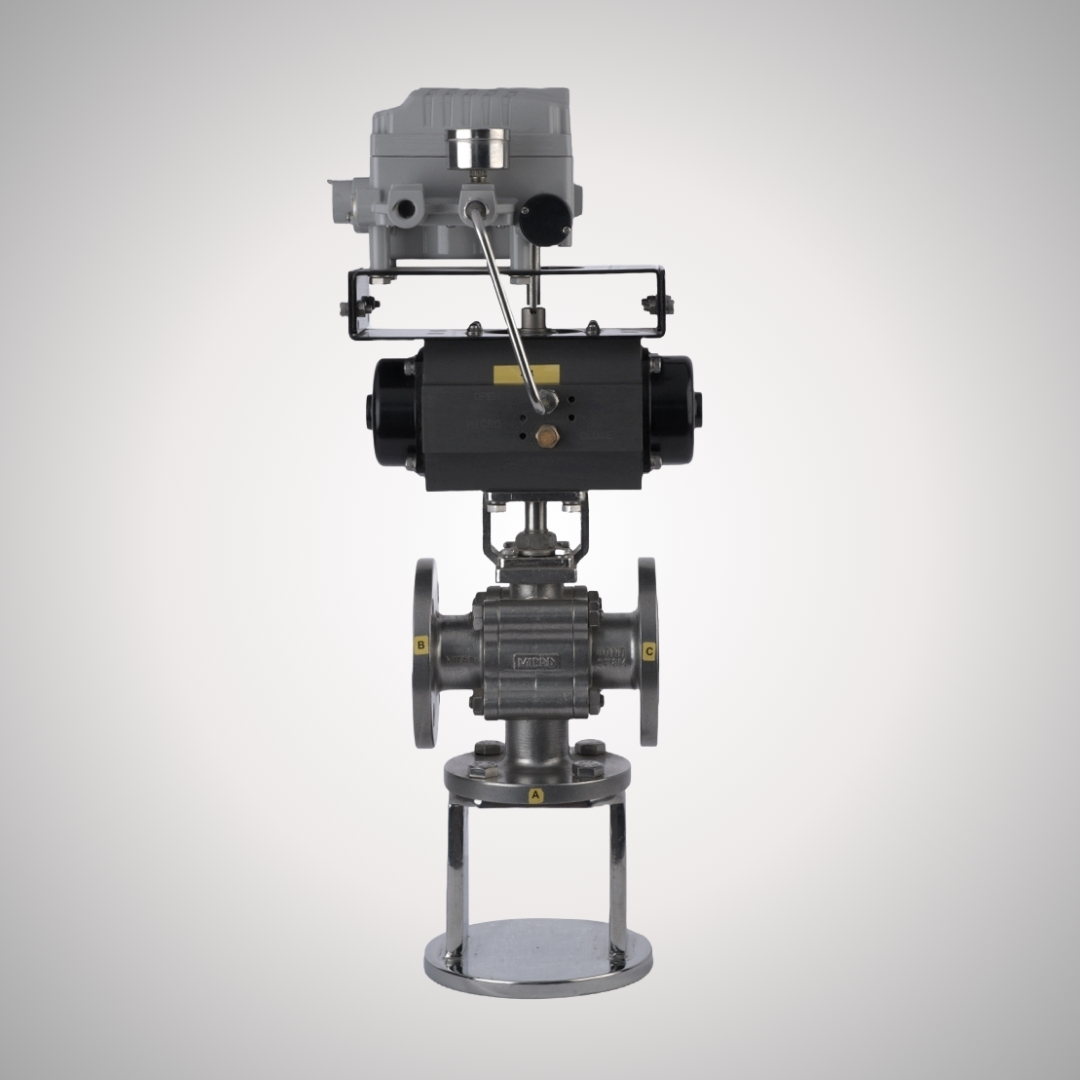

Tri Port Control Ball Valve
The port configuration –
- One inlet and two outlets or two inlets and one outlet.
Features
- Diverting or Control Diverting.
- Control and Mixing.
The control diverting enables equal percentage flow characteristics to process with inbuilt corresponding equal percentage by-pass without any development of back pressure or pressure drop. Ideally suited for viscous and slurry flows protecting the pumps.
The control diverting is also features for achieving Coarse and Fine application with by-pass (recirculation) normal open.
The three ports configured open, one at bottom and other and other two at the right and left side of the valve respectively.
- Mounting Interface
ISO 5211 - MOC of the Body
WCB, CF8, CF8M, CF3, CF3M, (special on request) - Trim
CF8, CF8M, CF3, CF3M (special on request) - Seat / Cavity Filler
PTFE, RPTFE (Special on request) - Size
½”to 8”
