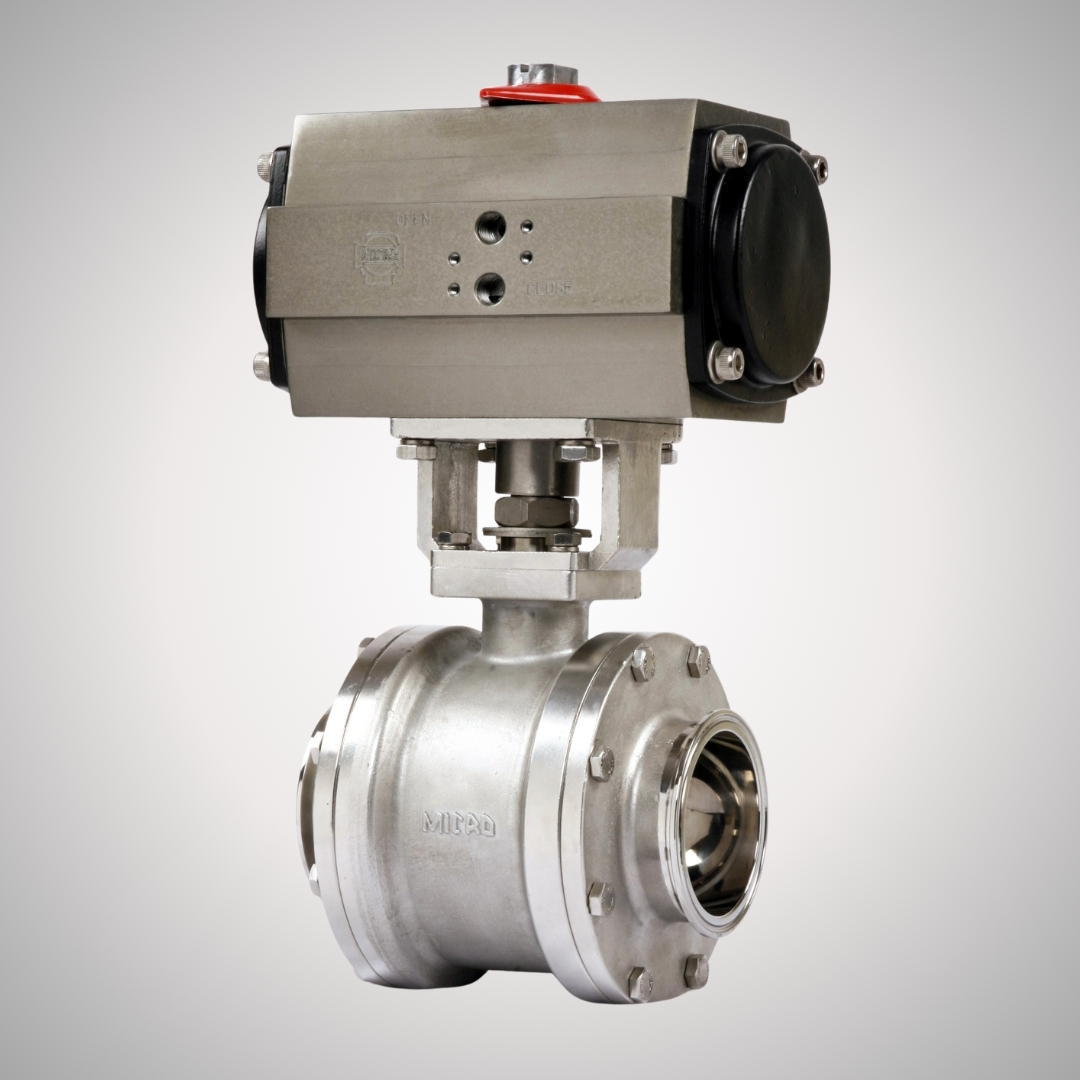

TC End Cavity Filled Ball Valve with Actuator
High Purity Ball Valve: Designed and manufactured as per GMP norms, ISO 2852 and ASME / BPE 1997 / API 6D
Typically used in Bio – Pharma, Pharmaceuticals, Food & Beverage Industry.
A series of grit polishes is applied in a successively finer sequence until the desired finish or surface roughness achieved on the internal surface of the valve and components.
The integrated seat with cavity filler prevents fluids entrapment leading to contamination and cavity fillers ensures clean internals.
- Mounting Interface
ISO 5211 - MOC of the Body
CF8, CF8M, CF3, CF3M (Electro polished and internal surface Buffed ) - Trim
CF8, CF8M, CF3, CF3M (Mirror Finished) - Lining
FEP PFA - Seat/Cavity Filler
PTFE
- Size
½”to 6” - Pressure Rating
PN 10 - Construction
FB, 3 piece
