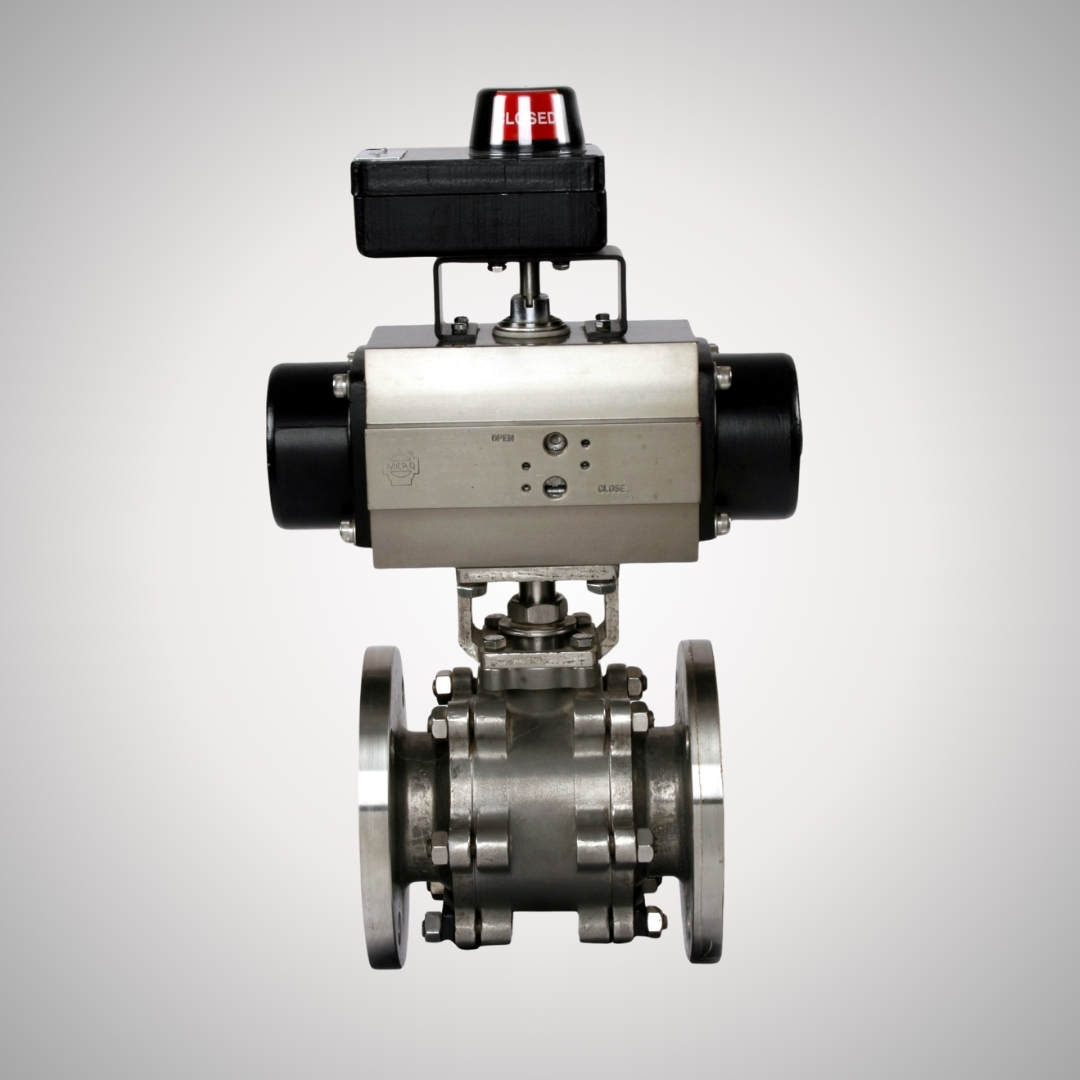

Metal Seated Ball Valve with Actuator and Position Indicator
- Designed & Manufactured as per Industry Standards
- Pressure Testing API 6D, API 598, BS 6755.
- Fire Test API 6FA, BS 6755 Part II
Metal seated ball valve is well suited for variety of demanding services where high temperature and abrasive solids are present. The design provides freedom for thermal expansion of the ball without jamming even at extreme temperature.
Application: Hot Gases, liquids, Solids and Slurries.
Tightness rates: allowable leakage rate at full ▲P ASME/FCI 70-2 Class V with special lapping.
- Mounting Interface
ISO 5211 - MOC of the Body
WCB, CF8, CF8M, CF3, CF3M, - Trim
SS 316 / SS 304 HastalloyStellitedand ground - Seat
SS 304 , SS 316Stellited Inconel 625, - Backup Seal
Graphite
- Size
½”to 8” - Pressure Rating
ASME 150#, ASME 300# - Construction
FB, 3 piece / 2 piece
