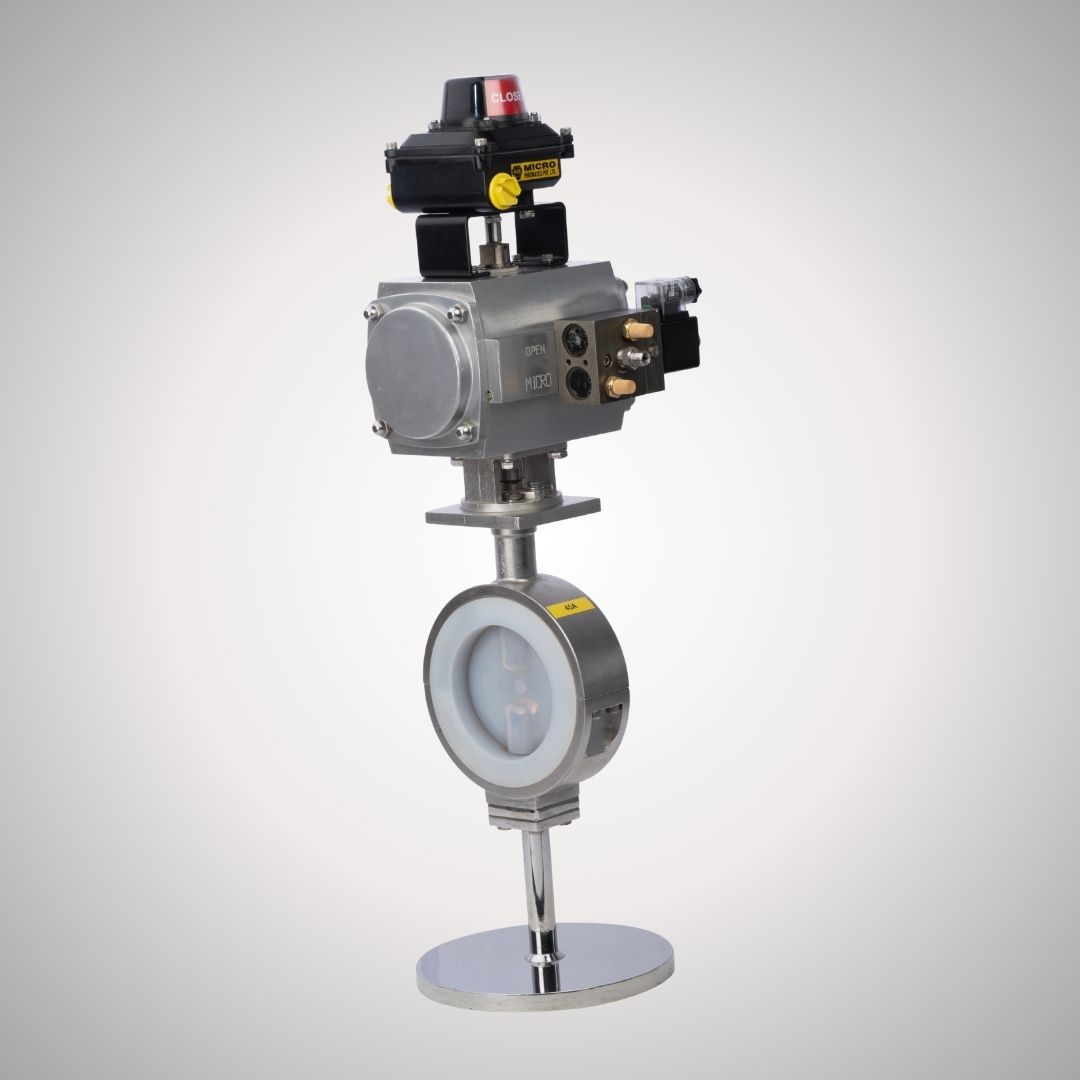

Lined butterfly Valve with Actuator
- 2 Piece Designed Valve body with easily replaceable PTFE& PFA Sleeve with PFA, FEP and PVDF lined Flap.
- Designed for highly Corrosive Fluids and Acids.
- This design allows easy and quick in-line maintenance.
- Mounting Interface
ISO 5211 - MOC of the Body
Ductile Iron, WCB, CF8, CF8M, CF3 and CF3M with PTFE/ PFA Sleeve - Flap
WCB, CF8, CF8M, PFA,FEP,PTFE Lined - Backup seal
Silicon Viton
- Size
1½”to 24” - Pressure Rating
PN 10 (Higher pressure rating on special request) - Construction
Centric, Universal wafer type
