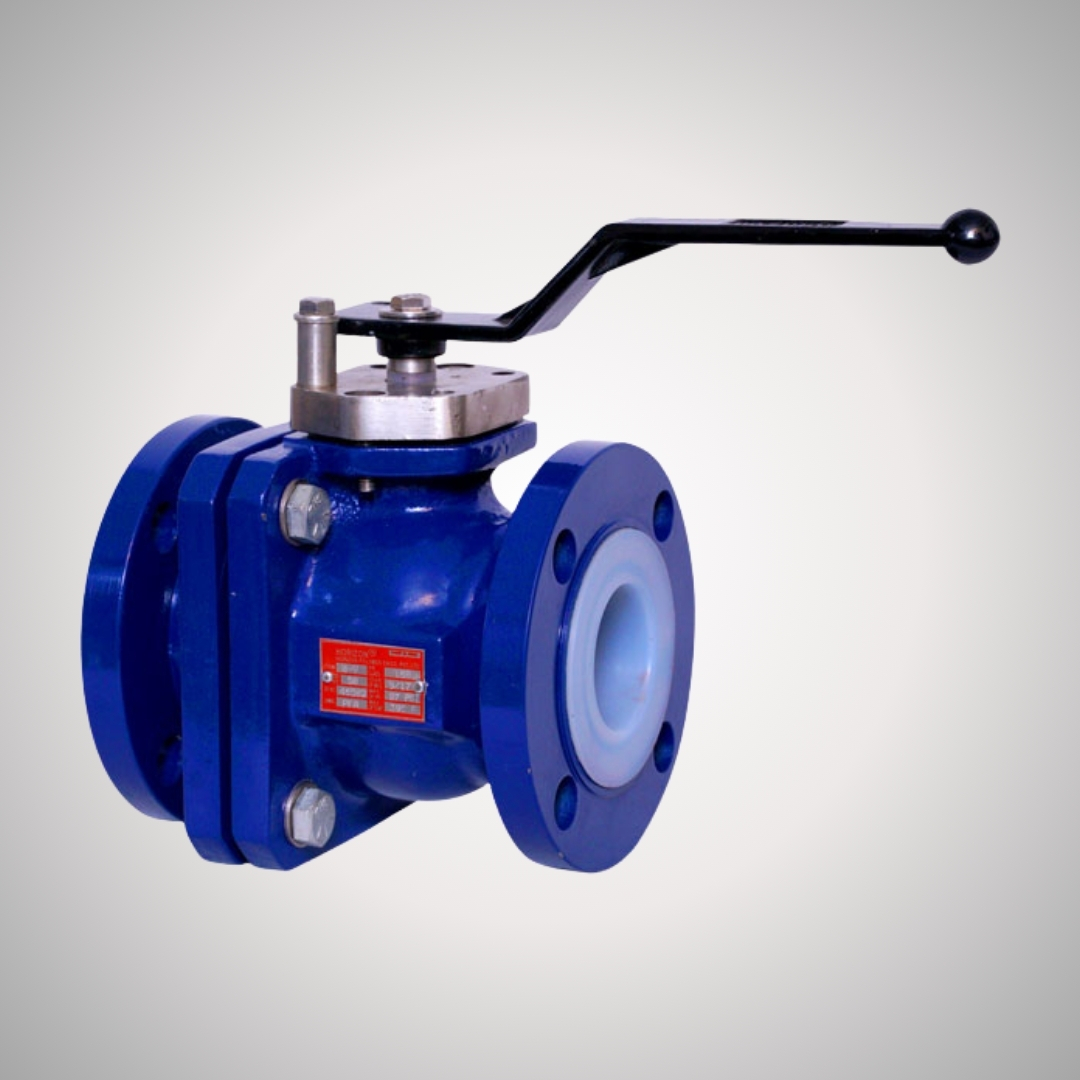

Lined Ball Valve with Actuator and Solenoid Valve
2 Piece Designed ball Valve Body with minimum 3.5 mm thermoplastic lining of PFA, FEP and PVDF, one – piece ball and Stem with minimum lining of 3 mm of PFA, FEP and PVDF universally used for highly corrosive and chemical application.
Full lining thickness in the sealing zone however provides security against permeating media. Live-loaded PTFE seat rings, a permanent tightness is ensured for pressure, temperature and vacuum.
- MOC of the Body
Ductile Iron, WCB, CF8, CF8M, CF3M (Lined) - Trim
WCB, CF8, CF8M, CF3M (Lined) - Lining
FEP PFA PVDF - Seat
PTFE, RPTFE (Special on request)
- Size
½”to 8” - Pressure Rating
PN 10 (Flange, dimensions as per ASA 150 #) - Construction
FB, 3 piece
